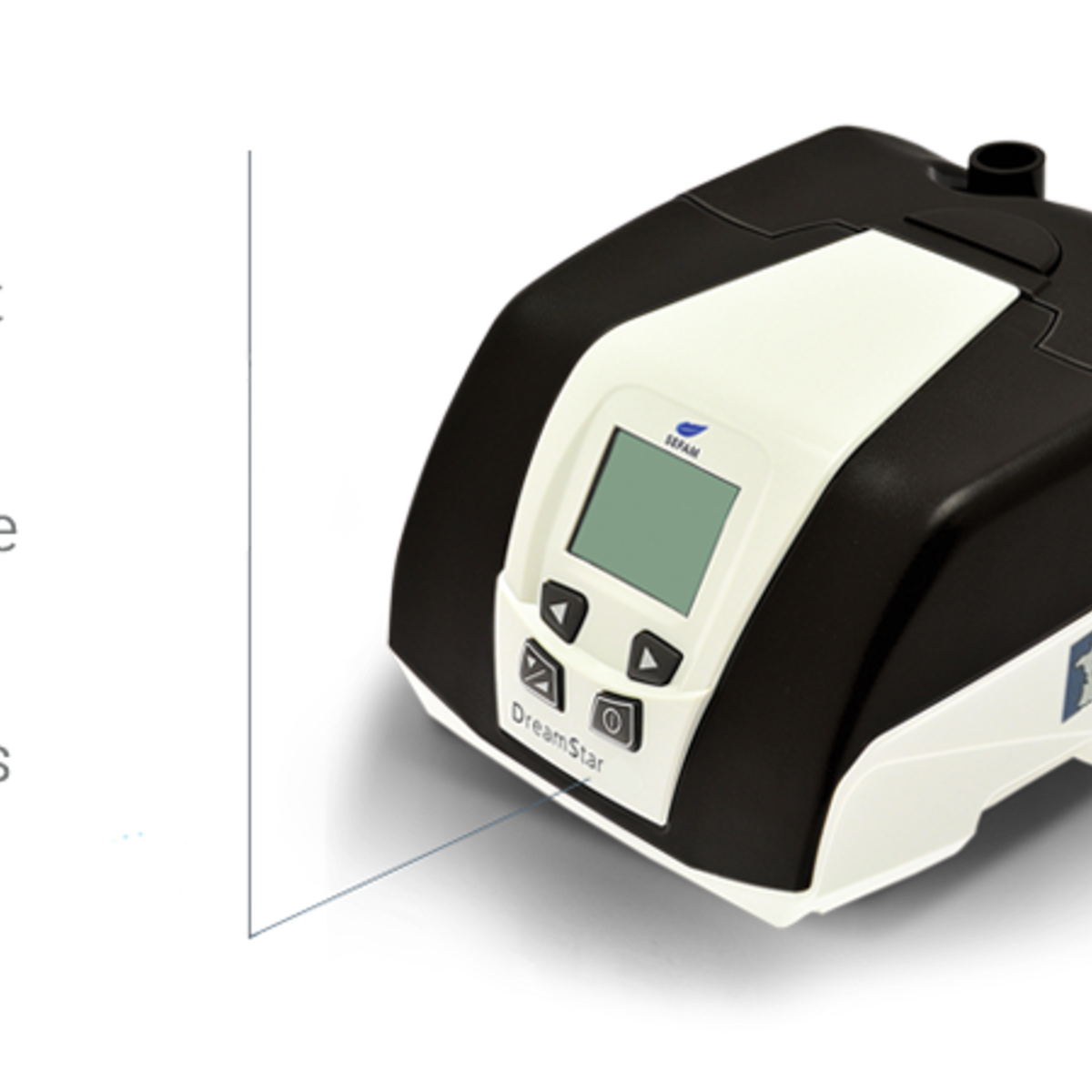

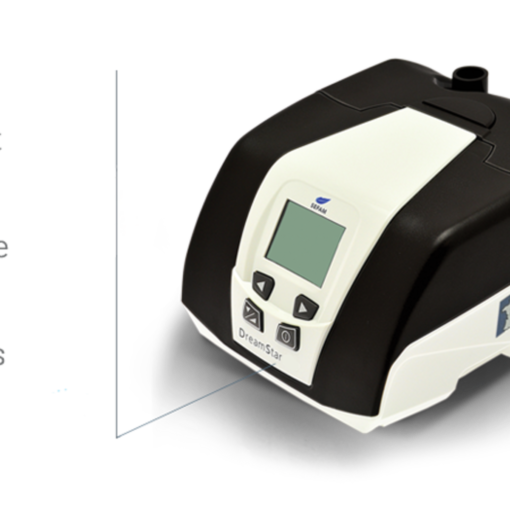

Duo/ Duo St Bipap

Description

The patented advanced features (FlowSens, Specific calibration) allow the medical professional to ensure that the device is correctly synchronized to the patient’s needs (triggering of the inspiratory and expiratory cycles, leaks compensation) and adapted to the components of the pneumatic circuit (type of tubing, mask).

DreamStar Duo and DreamStar Duo ST work with OxyLink, which allows the clinician to evaluate the efficacy of the treatment by linking oximetry data to respiratory events and other data from the device. All of this data for the last 365 days can also be analyzed using the DreamStar Analyze software.

TECHNICAL SPECIFICATIONS:

Mode : Bilevel

Pressure delivered: EPAP: 3 to 20 cm H2O adjustable in 0,5 cmH2O increments, IPAP: 3 to 25 cm H2O adjustable in 0,5 cmH2O increments

Max flow : 180 lpm to 20 cm H2O

Advances adjustable settings:

10 levels trigger sensitivity – 5 rise time speed levels – Backup frequency (Duo ST) from 0 to 25 bpm – I/E ratio (Duo ST) from 1/4 to 1/0,5

Sound level:27 dBA

Dimensions(D x W x H):23 x 20 x 12 cm

Weight:1,5 kg with humidifier; 1,4 kg without humidifier
