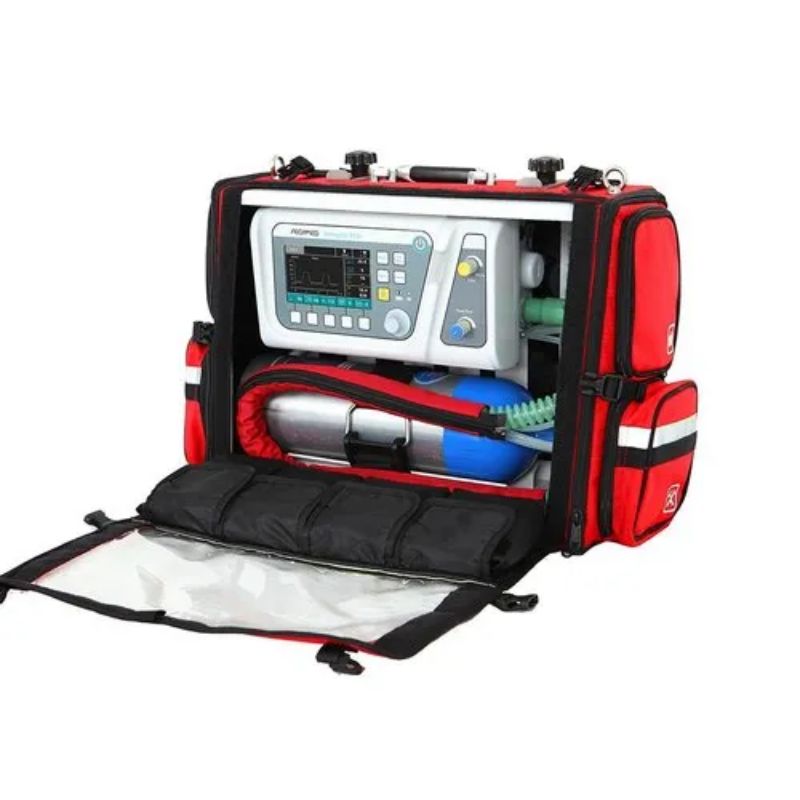

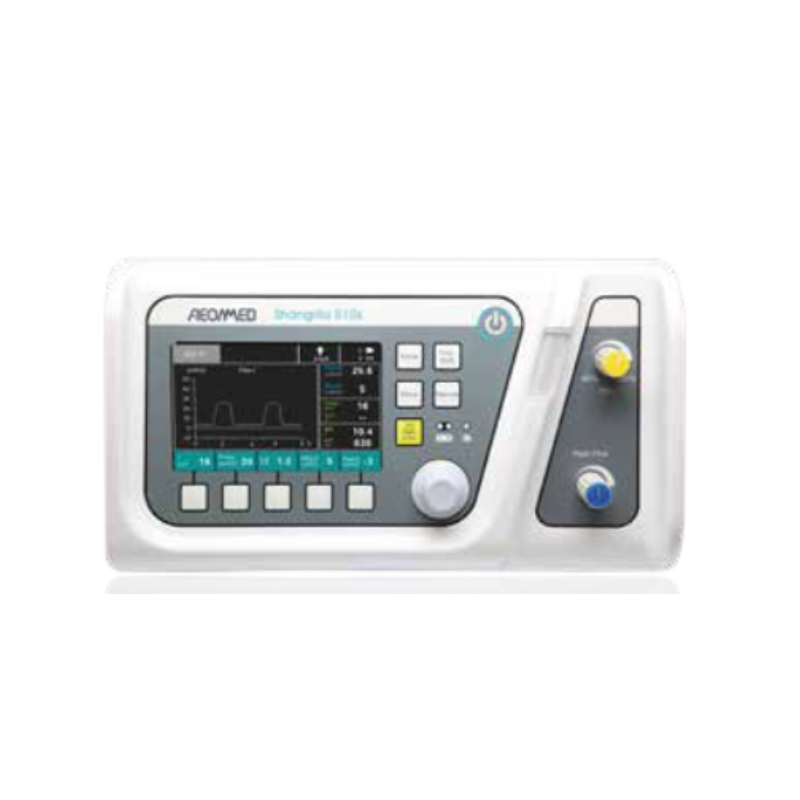

Aeonmed –Shangrila 510S Portable Ventilator
AED 21,525.00 VAT included
Brand | Aeonmed |
---|
-
free delivery
above 1000 AED
-
FAST DELIVERY
with in 2-3 days
-
always authentic
Only Reputed Brands
-
GENUINE
Brands
Description
The Shangrila 510S is a multifunctional emergency transport ventilator that helps optimize quality of care and patient comfort improving patient outcomes.This one device addresses diverse ventilation requirements during this time of COVID 19 associated ventillator shortages. The Shangrila 510S has integrated versatile ventilation modes such as Pressure Contrrol and Volume Control for Non-invasive and Invasive ventilatory support in SPONT/PSv mode as well as CPAP. Pneumatically driven and electronically controlled, the Shangrila 510S combines advanced technology and versatile ventilation functions, meeting the breathing requirements of adults, pediatric and infant patients.
Feature
- Waveform display and multi-parameter monitoring
- Electronically controlled PEEP
- Direct access to critical settings and patient data
- Acoustic and visual alarms
- Anti-crash design
- Operate with low flow oxygen supply
Specification
- Supply Gas: O 2 , 0.25~0.6 MPa
- Power Supply: AC100~240 V, 50 Hz/60 Hz, ≤65 VA
- Screen Size: 5〞LCD Screen
- Maximum Security Pressure: ≤8 KPa
- Compliance: ≤4 ml /100 Pa
- Dimension (WxDxH): 168 mm x 156 mm x 300 mm
- Battery Operating Time: Approx. 4.5H
- Weight: 3.2 kg (Main unit) ,8 kg (Main unit & Accessories)
- Tidal Volume: 0~2000 ml
- Respiration Rate: 1~120 bpm (A/C mode)
- I:E Ratio: 1:10~4:1
- FiO 2 : 40%~100%
- Trigger Sensitivity: Pressure trigger: -20~0 cmH 2 O
- Flow Trigger: 2~30 L/min
- PEEP: 0~30 cmH 2 O
